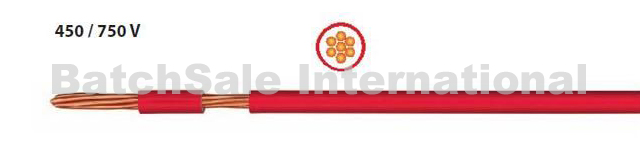

H07V-R PVC Wire
H07V-R PVC Wire, PVC cable, control cable, power control cable

Code: H07V-R, NYA
Standards: IEC227, BS 6004, VDE0281
Construction:
  1- Standard Copper Conductor
  2- PVC insulation
Application:
  Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Mean Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
mm2 No.×mm mm min max Ω/km kg/km Pip A Air A
1.5 7×0.51 0.7 2.7 3.3 12.1 22 16 25
2.5 7×0.66 0.8 3.3 4.0 7.41 36 20 34
4 7×0.83 0.8 3.8 4.6 4.61 52 26 45
6 7×1.02 0.8 4.3 5.2 3.08 74 35 57
10 7×1.32 1.0 5.6 6.7 1.83 110 46 75
16 7×1.68 1.0 6.4 7.8 1.15 170 62 100
25 7×2.20 1.2 8.1 9.7 0.727 265 82 130
35 7×2.55 1.2 9.0 10.9 0.524 360 100 160
50 7×3.00 1.4 10.6 12.8 0.387 501 120 200
