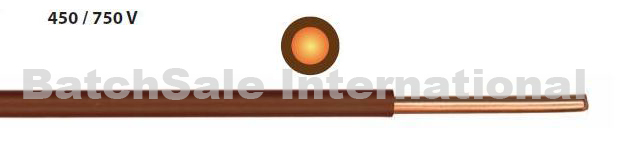

H07V-U PVC Wire
H07V-U PVC Wire, PVC cable, control cable, power control cable

Code: BV, H07V-U, NYA
Standards: 227IEC01, BS 6004, VDE0281-3
Construction:
  1- Solid Copper Conductor
  2- PVC insulation
Application:
  Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Nominal Cross Section Wire Diameter Thickness of Insulation Mean Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
mm2 mm mm min max Ω/km kg/km Pip A Air A
1.5 1.35 0.7 2.6 3.2 12.1 19 16 24
2.5 1.73 0.8 3.2 3.9 7.41 29 20 32
4 2.19 0.8 3.6 4.4 4.61 42 26 42
6 2.68 0.8 4.1 5.0 3.08 62 35 55
10 3.50 1.0 5.3 6.4 1.83 110 46 75
