SKGV

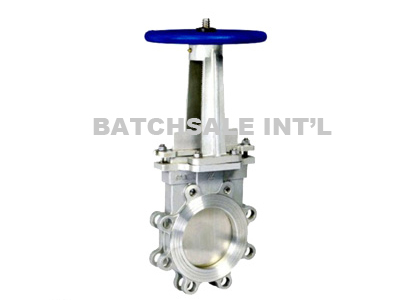

Product Group: Knife Gate Valve.
Product Description:
| Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
| Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
| Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
| Wedge |
A276 430&410 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
| Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
| Gasket |
Corrugated SS+graphite |
SS+PTFE |
| Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
| Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
| Pin |
A276 420 |
A182 F304(L) |
| Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
| Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
| Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
| Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8 |
| Yoke Nut |
A276 420 |
| H. W. Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8 |
| Nameplate |
SS |
| Handwheel |
A197 |
| Bearing Gasket |
A473 431 |
| Stem Packing |
Flexible Graphite |
PTFE |
| Suitable Medium |
W.O.G etc |
W.O.G. etc |
HNO3, CH3OOH etc |
| Suitable Temperature |
-29°C～425°C |
-29°C～425°C |
-29°C～180°C |
Note: Other materials are available upon request.
CS=Carbon Steel; AS=Alloy Steel; SS=Stainless Steel;
